LNN - AXIALLY SPLIT

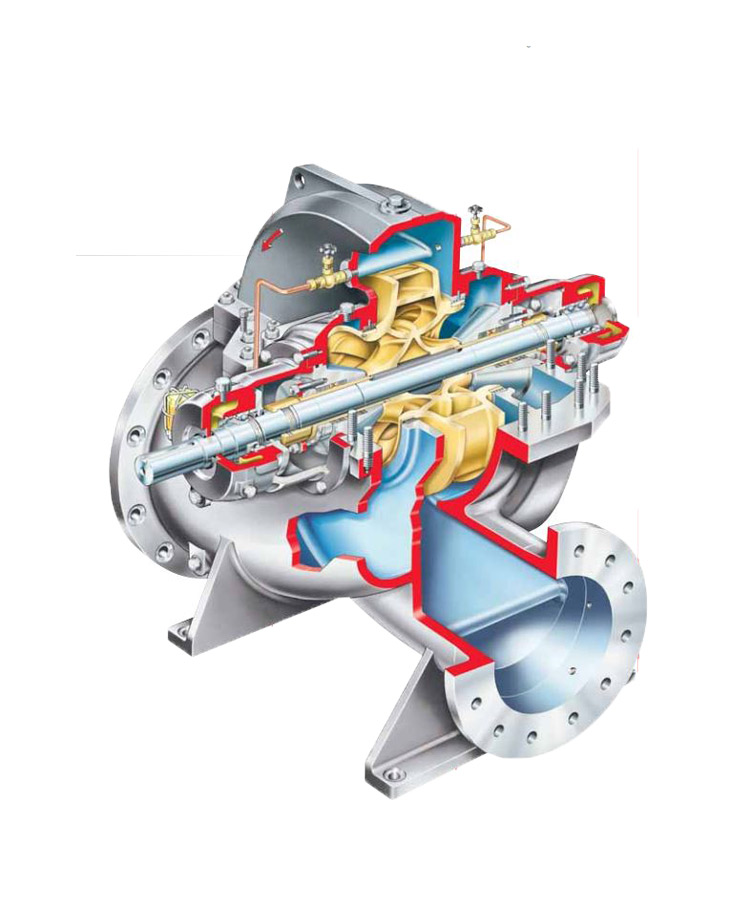

The LNN family of pumps is the outcome of many years experience in the design and manufacture of axially split casing pumps. State of the art pump design technology from Flowserve has resulted in superior pumps combining quiet operation, low NPSH requirements and high operating efficiency.

Contact Us

  • Function Pump
  • Connection type Without
  • Drive concept With electric actuator
  • Max. flow rate 7200 m3/h
  • Max. head 30 m
  • Min. head 0.1 m
  • Mains frequency 50 Hz, 60 Hz
  • Mains voltage 380 V, 400 V, 690 V
  • Casing material EN-GJL-250
  • Nominal pressure PN 16
  • Max. allowed working pressure 16 bar
  • Suction behaviour Non-self-priming
  • Max. allowed fluid temperature 40 °C
  • Min. allowed fluid temperature 2 °C

Title Format Size Download
Amacan K 700 - 800, 50 Hz (1579.8100_EN) PDF 5.5
